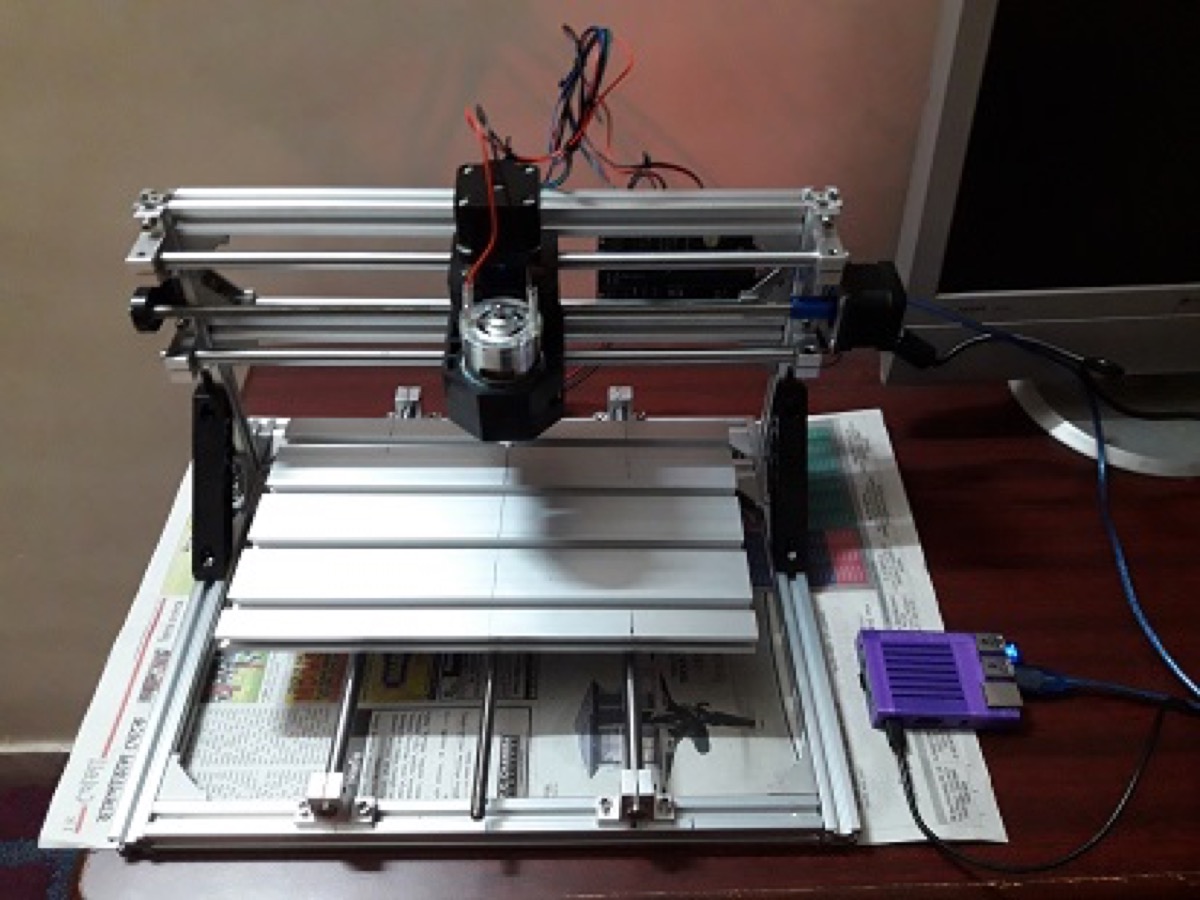

Meet my 3018 RPi-controlled CNC machine

This is a Raspberry Pi–controlled desktop CNC machine: a 3018-class mill that can cut wood and soft metal from any 3D design, and also run as a laser-engraving CNC. I built it as a weekend-scale project for under $200, and I still think of it as one of the clearest examples I own of “software meets physical work.”

What it can do

• Cut 3D patterns designed in CAD tools such as ArtCAM, Inkscape, Altium Designer, Tinkercad and similar
• Mill wood and soft metal against those designs
• Perform CNC laser engraving when fitted with a laser module
• Accept G-code jobs from the network — laptop, tablet or phone — without sitting at the machine

The motion stack is the familiar desktop CNC pattern: aluminium extrusion frame, lead screws / smooth rods on X, Y and Z, NEMA stepper motors, and a spindle (or laser) on the Z carriage.

Control stack: GRBL + Arduino + Raspberry Pi

I am using GRBL as the G-code runtime. GRBL is a popular open-source, embedded, high-performance G-code parser and CNC milling controller written in optimised C that runs on a straight Arduino. It turns a stream of G-code into timed step pulses for the axes and spindle.

The CNC controller board is connected over USB to a Raspberry Pi. On the Pi I run CNCjs — a browser-based CNC control interface that talks to GRBL. That split matters:

Remote invocation from any device

CNCjs is started on port 3000 and reachable on the home network. From another computer, tablet or phone I open:

http://myraspberrypi:3000

That is enough to load a G-code file, jog the machine, start a cut, and watch progress — without a dedicated desktop tethered to the mill. For local use that URL stays on the LAN; exposing it more broadly is a security decision, not a capability one.

Software path from idea to cut

1. Design the part in CAD (ArtCAM, Inkscape, Altium, Tinkercad, …)
2. Generate toolpaths / G-code for the 3018 work envelope and chosen bit or laser
3. Copy or upload the .nc / G-code file into CNCjs on the Pi
4. Home / jog, set work zero, dry-run if needed
5. Run the job while GRBL executes the stream

Cost and context

All-in hardware for this build stayed within roughly USD 200 — frame kit, steppers, spindle, controller, and a Pi I already had in rotation. It is not a production shop machine. It is a teaching machine: G-code becomes something you can hear and smell, and a network port becomes a mill.

Watch it run

Original walkthrough from the build (also on my YouTube channel):

References

• GRBL — open-source CNC controller
• CNCjs — web-based CNC interface
